Mumz3
i built this keyboard and at first everything was working fine, then i came back later in the day to find that the keyboard itself had just stopped working,
at first i tried the obvious approach of just unplugging the usb and plugging it back in but it said that the driver had failed to install. I followed a guide on geekhack to find a way to reinstall the driver (https://geekhack.org/index.php?topic=83145.0) and that worked but the keys and leds still werent working so i used EASYAVR to build and program the layout and that worked up until it said i needed to upload the USB AVR using Flip,
i already had flip installed but it wasnt letting me run it through flip and instead showed an error saying " Java virtual machine not found" so instead i uploaded it through USB AVR using dfuloader and it worked but the keyboard still seized to work. I have no idea what to do now and cant help but feel as if this kit was a waste of money.
Overall quality is not great, there were some knicks in the aluminum and a portion of the acrylic was not finished and looks really bad. But I haven't had any LED issues thankfully, and it works without issue. Don't really recommend; there are better 60% kits out there.
babyphil30
Had my second PCB leds die. Can't recommend this product.
I finally figured out how to solder! I only have the default layout on, I still need to figure out how to put in a new hex file.
Axiomatik
how can you program underglow led ?
indra_thamrin
Just use the RGB codes in QMK when you make your hex file. It's a bit confusing what each one does but they work!
Neblin7510
so after I put this kit together, everything was working great. then I woke up the other morning to have only one RGB light working on the bottom of the PCB. Ive tried everything. Flashed Sentraqs hex file from their site and literally nothing works. Well everything works but the underglow. Whats up Sentraq? Please let me know how to remedy this. I'm no noob to programming PCB's either.
I just pushed on one of the unlit RGB LED's and it started lighting up! Something is definitely off Sentraq.
Neblin7
i have the same problem.
i think the leds get kinda warm and the soldering on the rgb leds isnt that great and gets loose. :/
and i'm kinds scared of resoldering the rgb leds because i dont want to burn 'em.
Anyone know a way to read the default .hex on the keyboard. Mine has been normal until yesterday, when my CapsLock started registering as Ctrl.
Update: found the default .hex file on website but the CapsLock key is still registering as Ctrl key press. Any recommendations on what to do next?
Update2: messing around with the .hex file and if the CapsLock is replaced with something else (e.g. "a" in place of CapsLock it registers as "a") but CapsLock still does the same thing: Ctrl instead of CapsLock
bODO40
vashta-nerada
did you ever figure this out? I'm having the same issue.
bODO
No, never did find a way to fix it. Just you going to kinda ignore it and still use it
Rayvann12
I was able to solder the switches and test them, they all seem to work.
However I can't find the mapping for arrow keys in the default layout. I'm pretty sure Fn works, since Fn+Esc produces `~ and Fn+Z,X,C... changes the lighting, but Fn+WASD or other combinations don't seem to map to arrow keys.
Also, I plan on changing the layout with qmk, but I want to keep the current key combinations for the LEDs. Is the layout that comes with the board available anywhere so that I can build on it?
qn0x6
Fortunately I did not have any issues mentioned here. This is a pretty nice kit, had a lot of fun building it as well as learning how to flash custom keymaps.
Can someone give me a dumb downed explanation on how to turn the LED's on and how to change the color of the underglow lights. Thanks
Ruuhb
I didnt flash the keyboard or anything but hopefully this can help you i would press and hold fn and press Z to turn on and off the underglow. FN x will change the style of the underglow like breathing and waves and stuff like that fn C and V will change the colors of the underglow. FN [ and ] will change the keyboard leds to low medium and high in brightness.
Edit: looking further down the comments i came across a link that may be helpful
https://cdn.shopify.com/s/files/1/0834/6257/products/dsadasda_b2f6fa11-a616-4154-926c-2a44a1a7e22a_large.PNG?v=1494099954
Neblin7510

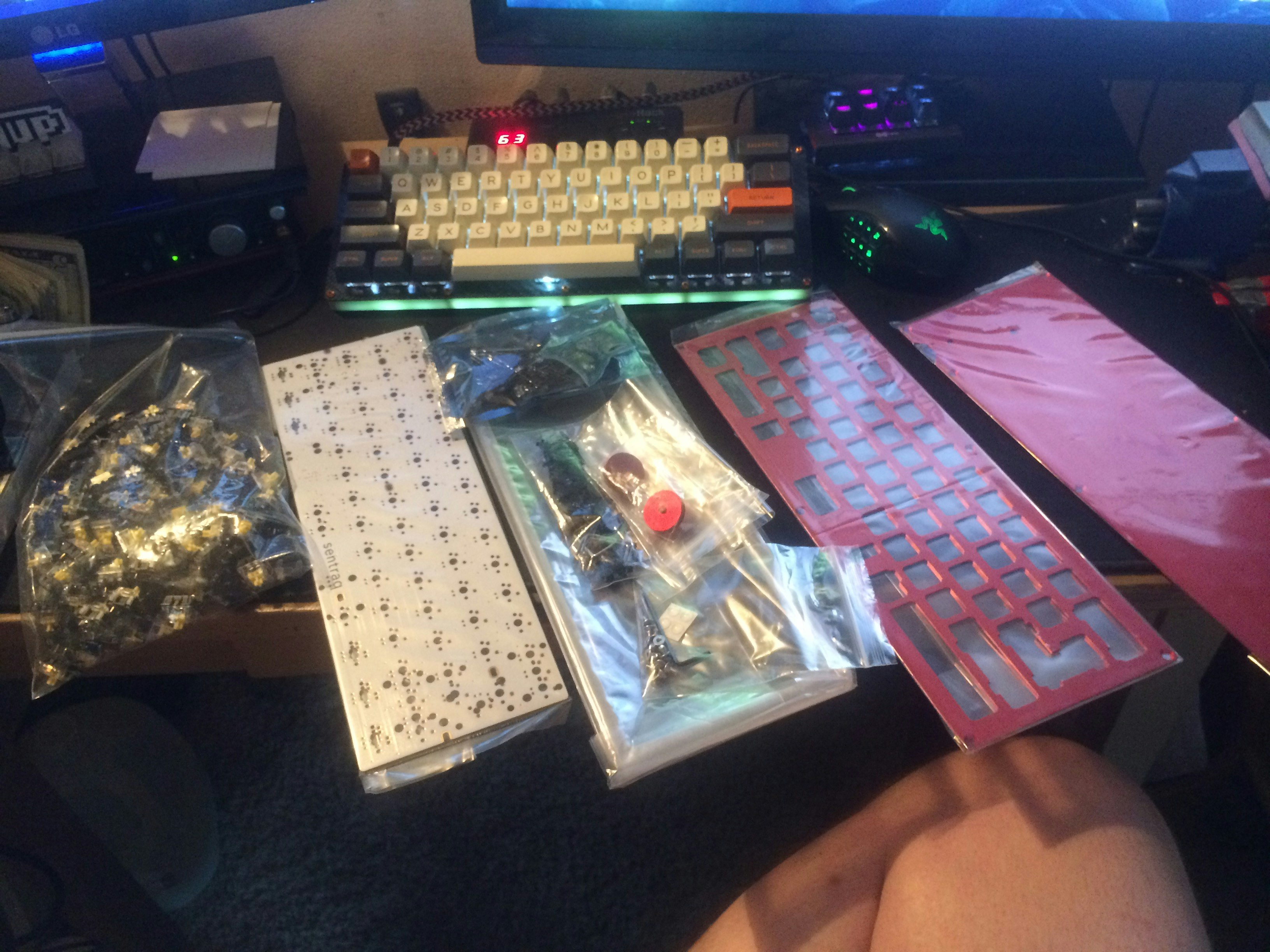

About to finally build something I want to use my Jukebox caps on....
